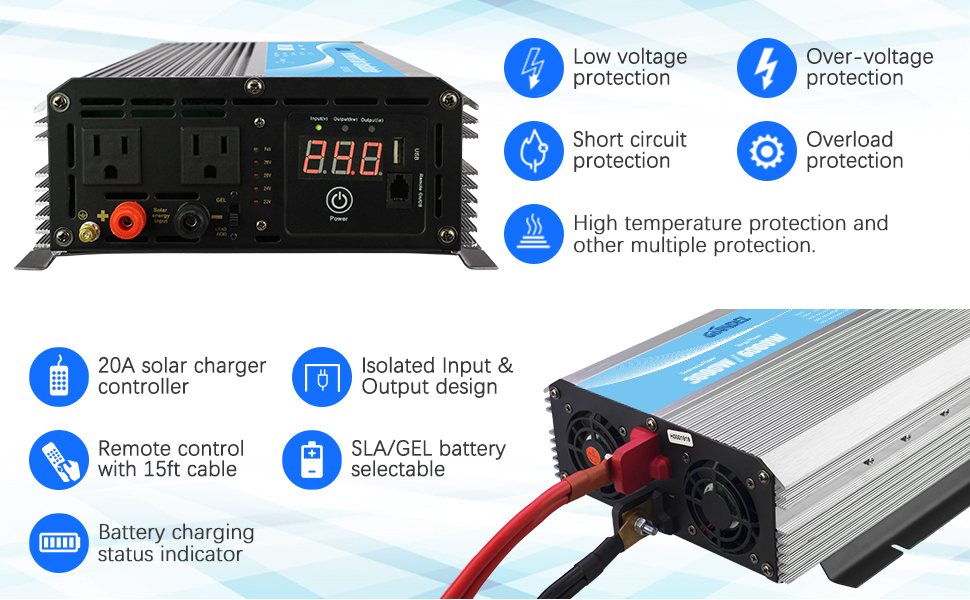

Specifications: • Power (2 AC Outlets): 3000W Rated,6000W peak • USB output: 1xDC 5V/2.4A(max) • Wave: Modified Sine Wave • Nominal input volt:19.6-32VDC • Nominal AC volt: 110-120VAC • Internal fuses:30Ax6 • Battery cables:one pairs with length of 2ft • Remote controller with 15ft cable. More convenient to control the inverter ON/OFF • 20A solar charge control(PWM) :suitable to connect 600W(30-36VDC) solar panel • Battery status indicator: display the voltage of battery while charge it by solar panel • Battery select switch: set to GEL or SLA according to your battery

More details and tips: • Please use our standard cables(two pairs) to connect the battery • Plug your AC devices into the inverter • Please do not leave the power inverter in the ON position while your car is off. • Disconnect the positive battery terminal before doing any wiring to the inverter • Do not put the inverter into sunlight directly, keep it in cool and dry environment • Don’t use the inverter with a product that draws a higher wattage the inverter can provide,as this may cause damage to the inverter and product

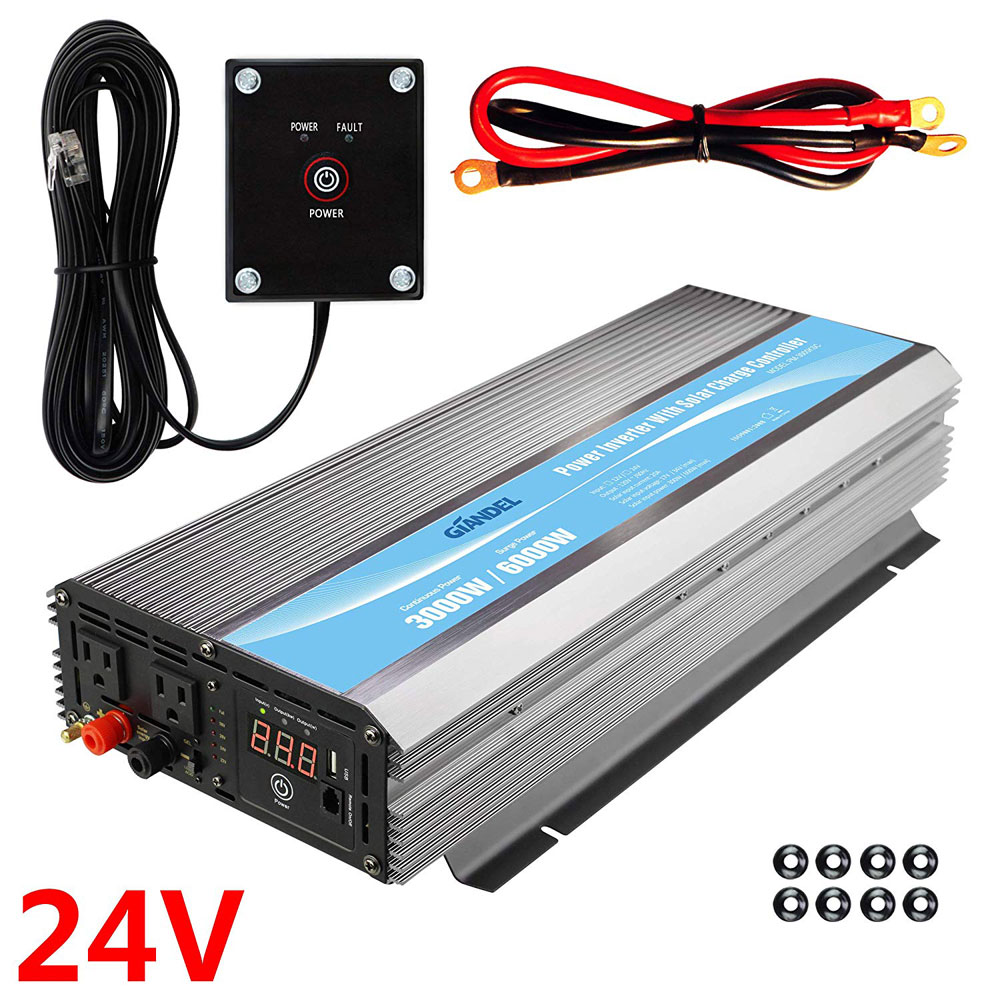

Package List: • 1x3000W 24VDC Inverter • 2x Battery Cables • 1xRemote Controller with 15 ft Cable • 1xUser Manual 8xshockproof pads 4 screws for remote controller Shockproof pads Manual
