Specifications:
Power (2 AC Outlets): 1600W Rated,3200W peak more powerful than 1500W inverter
USB output: 1xDC 5V/2.4A(max)
Output wave: Modified Sine Wave
Nominal input voltage:9.8-16VDC
Nominal output voltage: 110-120VAC
Internal fuses:30A
Battery cables:one pair with length of 2 ft
Remote controller: remote controller with 15ft cable. More convenient to control the inverter ON/OFF
20A solar charge control(PWM) :suitable to connect 300Watt(15-18VDC) solar panel
Battery status indicator: display the volt of battery while charging by solar panel
Battery select switch: set to GEL or SLA according to your battery More details and tips:
connect the inverter to a 12V battery, and plug your AC devices into the inverter
Please do not leave the power inverter in the ON position while your car is off.
Disconnect the positive battery terminal before doing any wiring to the inverter
Do not put the inverter into sunlight directly, keep it in cool and dry environment
Don¡¯t use the inverter with a product that draws a higher wattage the inverter can provide,as this may cause damage to the inverter and product Package List:

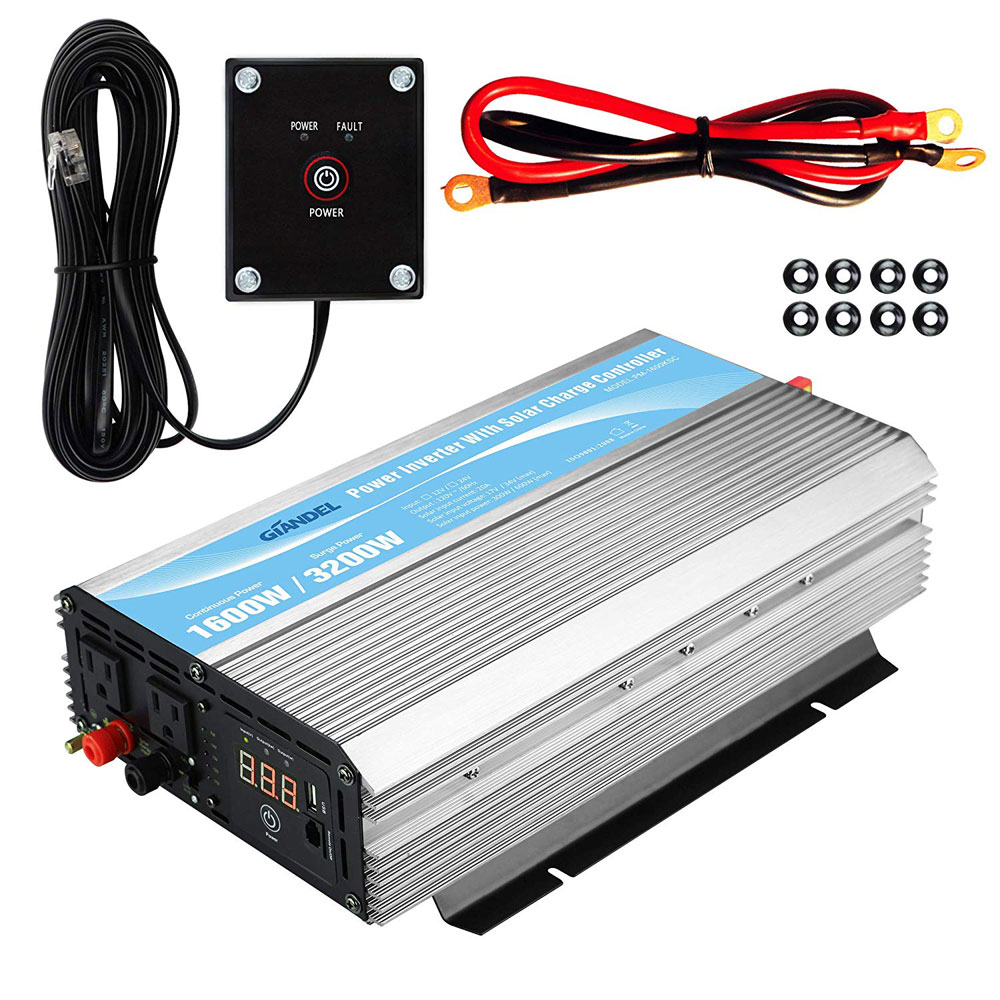

1x 1600W Power Inverter
2x Battery Cables
1xRemote Controller with 15 ft Cable
1xUser Manual
8xshockproof pads
Shockproof pads Manual
Warranty:18 months by Giandel
|
